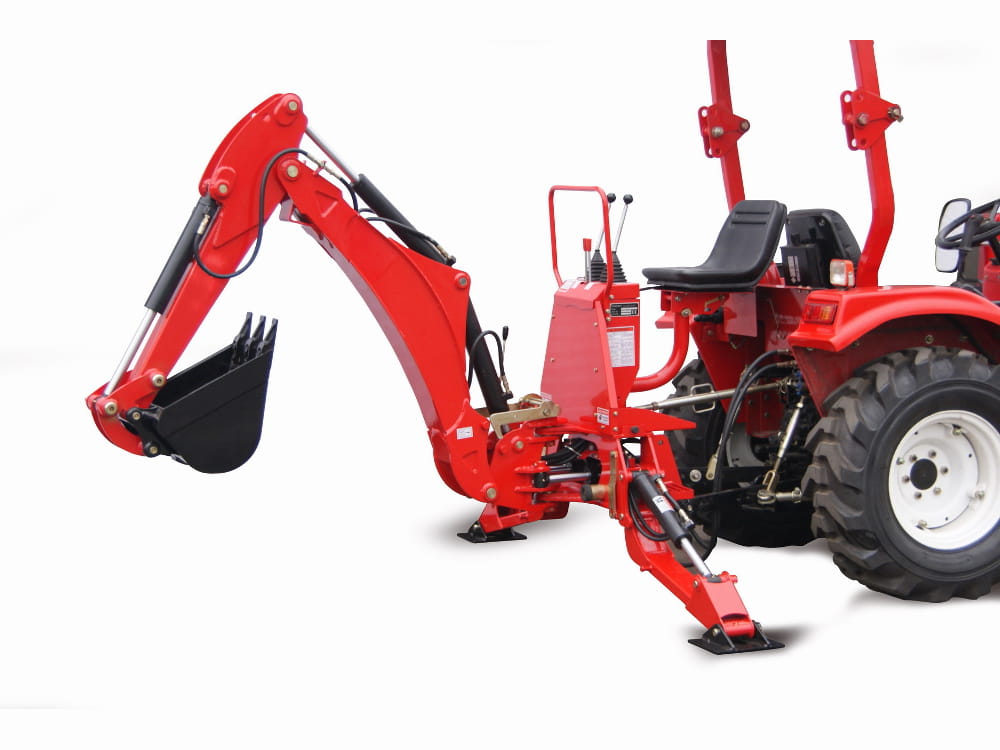

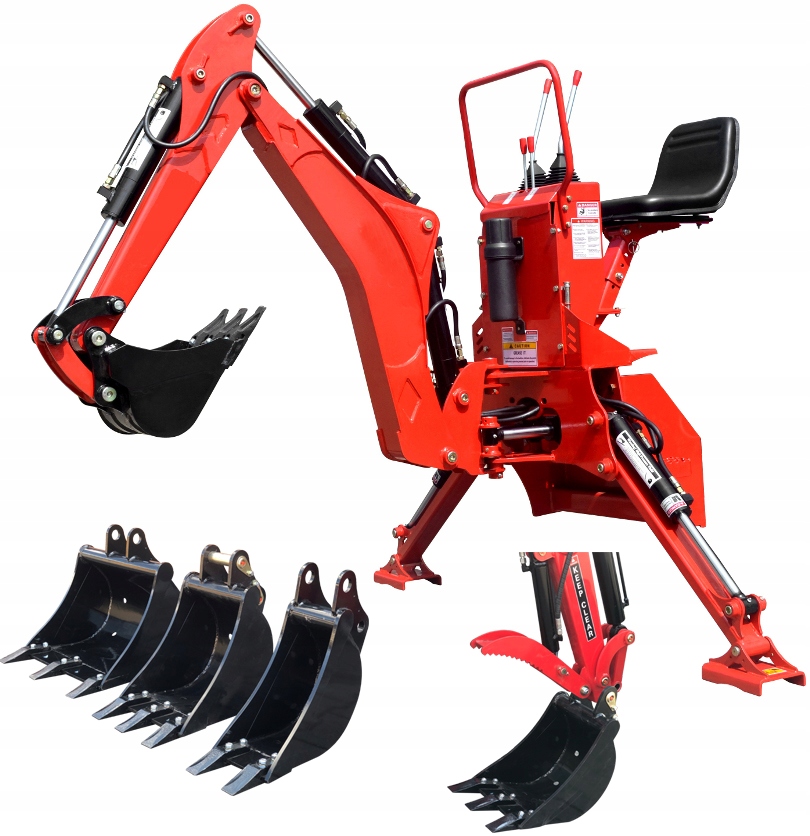

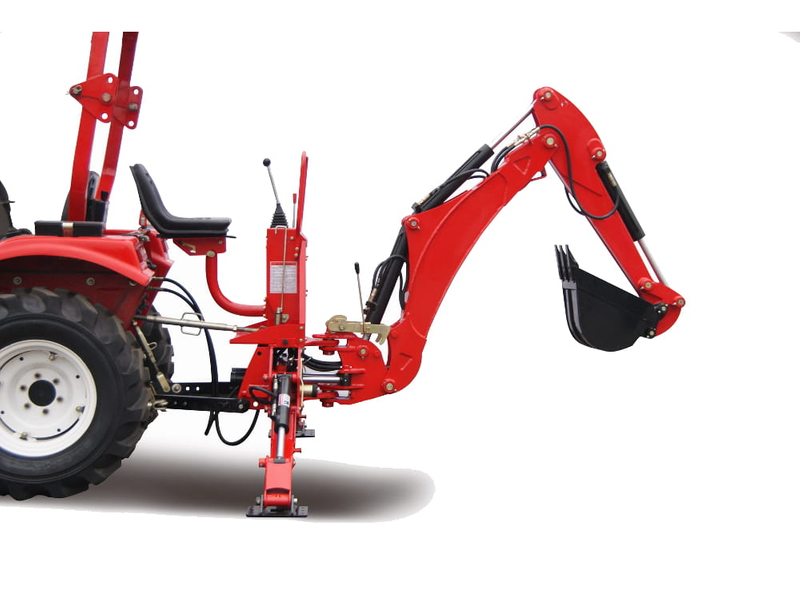

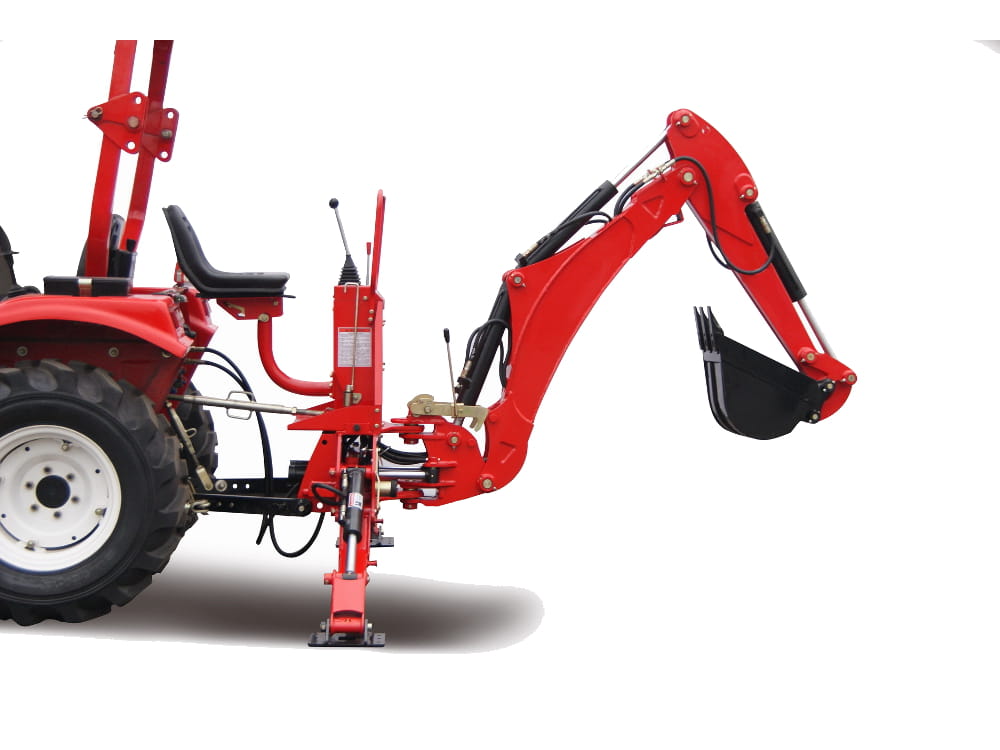

Tractor Backhoe BHM series For Small & Compact Tractors Up To 35 HP

Tractor backhoe digger attachment
Color: Red, Green, Orange, Yellow, Blue, Black or Colors combination
Minimum Order Quantity: 2 units
Packaging: Solid Iron Steel Crate
Port of loading: Qingdao
Quantity in a 40ft container: 48-56 units
Quality Assurance: Every machine will be evaluated before packaging.
We accept third party (such as TUV, BV, SGS, Intertek etc.) to check and test the machine before delivery
Availability:
Quantity:
  • BHM5600, BHM6600

  • WFMC

Weifang Fred Machinery Tractor Backhoes: Precision Digging, Unmatched Versatility

Tractor backhoes are indispensable for digging, trenching, and excavation in construction, landscaping, and agriculture. Weifang Fred Machinery offers a premium range of tractor backhoe attachments designed to meet diverse horsepower needs and digging depths. Equipped with features like mechanical thumbs and multiple bucket sizes, our backhoes deliver efficient, precise, and reliable performance.

The BHM compact tractor backhoe series is engineered for durability and ease of use, excelling in challenging environments such as vineyards, orchards, crop fields, and large properties. Its compact design navigates tight spaces and obstacles where larger machinery struggles, ensuring hassle-free operation without compromising power. Fred Machinery backhoes provide exceptional value, offering professional-grade excavation capabilities at a fraction of the cost of traditional 3-point backhoe attachments.

With Fred Machinery, you can trust in superior quality, unmatched versatility, and a job well done—every time.

Model
BHM5600
BHM6600
Matching Power15-25HP
20-35HP
Max. Digging Depth150cm/5 feet180cm/6 feet
Max. Digging Height210cm250cm
Max. Unloading Height145cm
160cm
Max. Digging Radius230cm
270cm
Bucket rotation angel160°

160°

Swing angle for boom180°

180°

Valve standard Pressure16Mpa

16Mpa

Bucket Width30cm

30cm

Weight340kg460kg
