ATBH15B
WFMC
TECHNICAL DATA:
4 stroke engine, Briggs & Stratton, 13.5 HP, 420cc or Loncin, Lifan, Ducar, RATO, etc. 15HP
Fuel: Regular gasoline
Starter: pull-cord or electric starter(option)
Weight: approx. 550 kg
Swivel range: 360 degrees
Digging depth: approx. 2.10 m
Range: approx. 2.70 m
Tipping height: approx. 1.60 m
Tearing force: approx. 550 kg
Load capacity: approx. 220 kg
Hydraulic oil quantity: approx. 14 l (HLP46)
Total length: 4.2 m
Width of the support: 2.0 m
Width of grey main frame: 1.0 m
Minimum width in transport position: 1.9 m
max. height: 2.6 m
25 cm shovel included
removable tow bar
Supports can be attached to the frame for transport
additional hydraulic control circuit on the excavator arm
4 double-acting hydraulic cylinders
Cross control (2 D-pads)
Packaging dimensions: 225x108x85 cm (LxWxH)
Shipping weight: approx. 620 kg
IDEAL FOR HARD-TO-ACCESS LOCATIONS

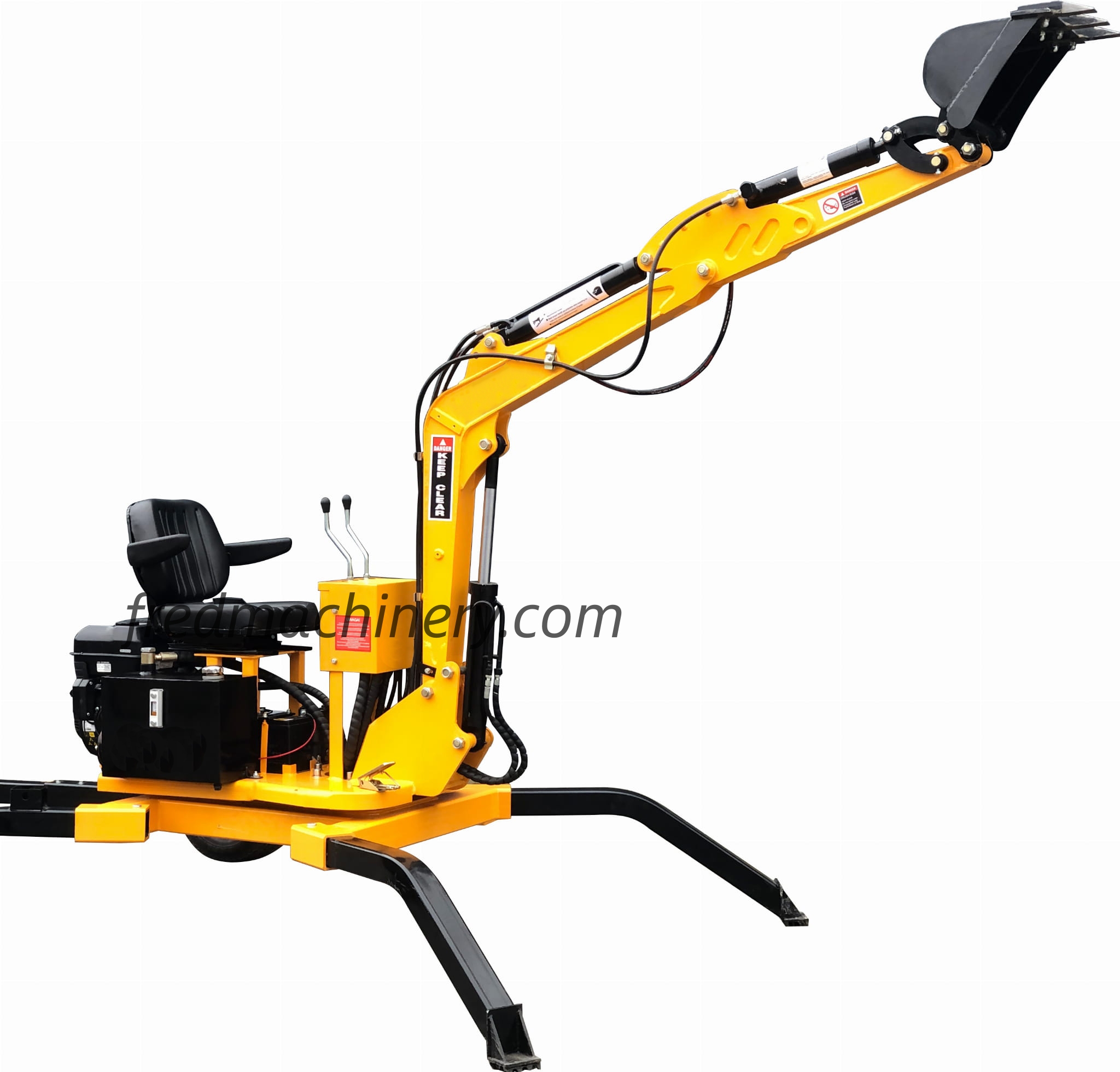

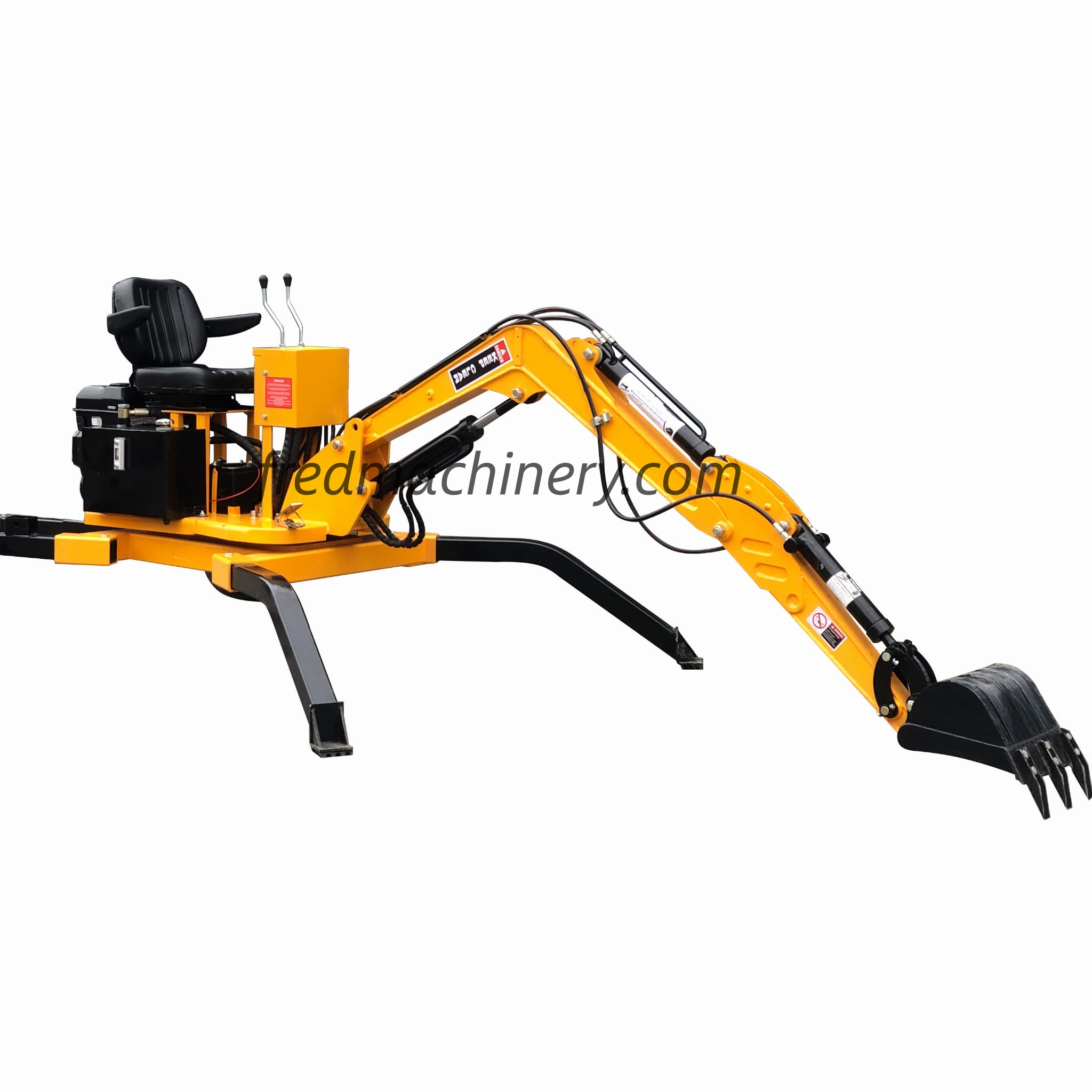

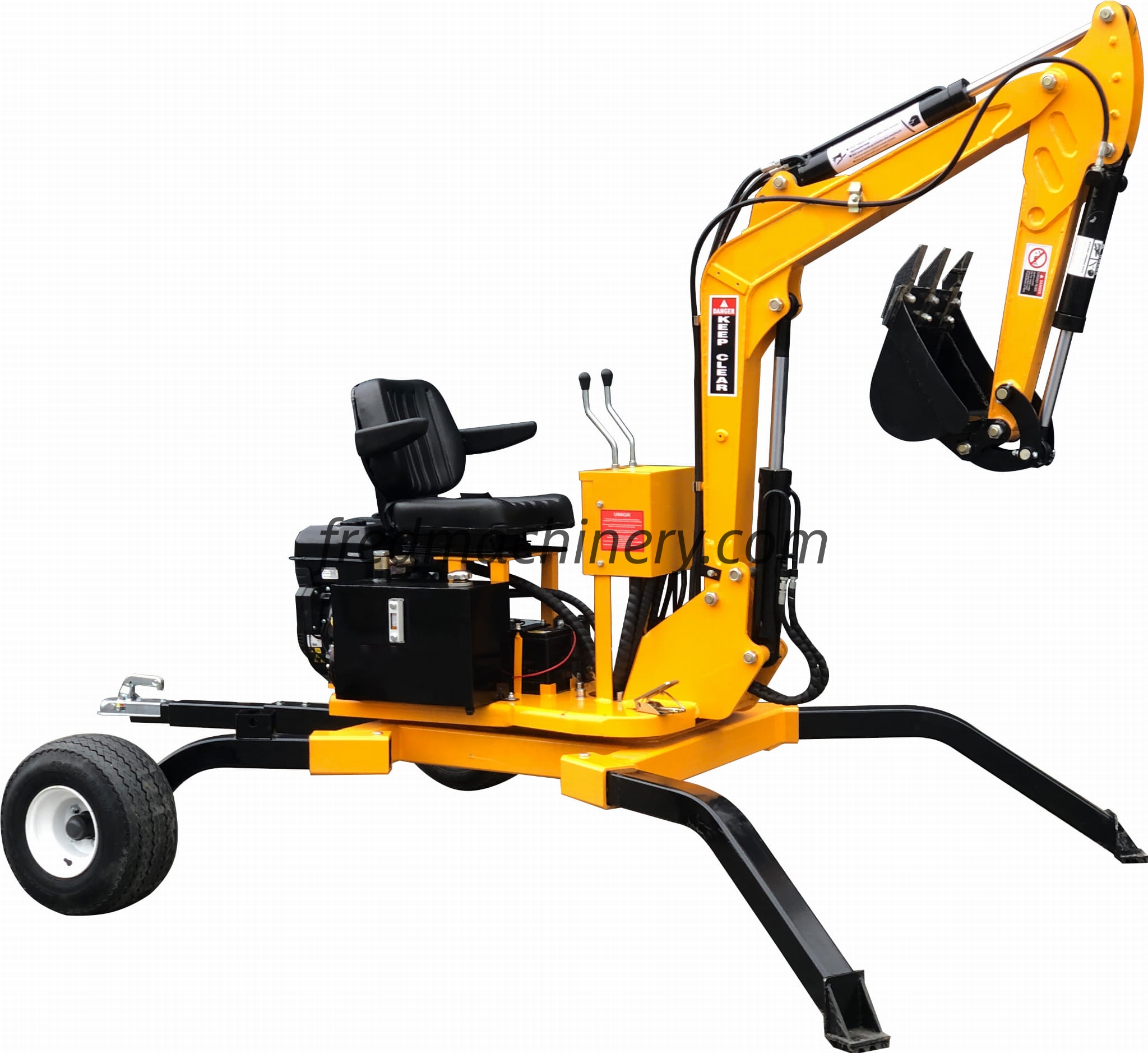

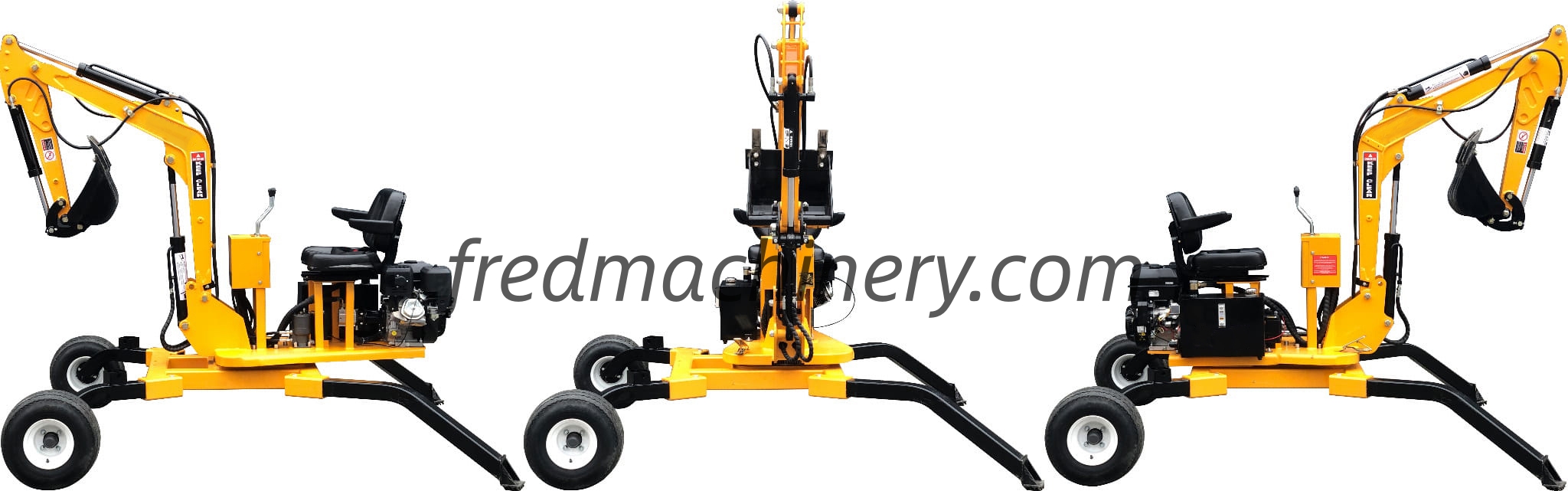

This walking excavator was specially developed to work effortlessly in areas inaccessible to conventional construction machinery. Swampy or mountainous terrain are no longer an obstacle for the Fred Machinery ATBH15. You will be impressed by its robustness and performance. The Fred Machinery ATBH15B is equipped with a removable drawbar with a ball head attachment, which allows you to transport the excavator easily and safely from A to B. The machine is not road legal, meaning you are not permitted to drive it behind a car on public roads. The machine does not have its own drive; however, you can move it by pushing or pulling with the bucket.
STURDY DESIGN AND ROBUST SUPPORTS
The sturdy construction of the Fred Machinery not only ensures high durability but also stability during operation. The robust supports ensure secure footing, even on uneven terrain. To put the machine into transport position, the wheels and outriggers are swapped from front to back.

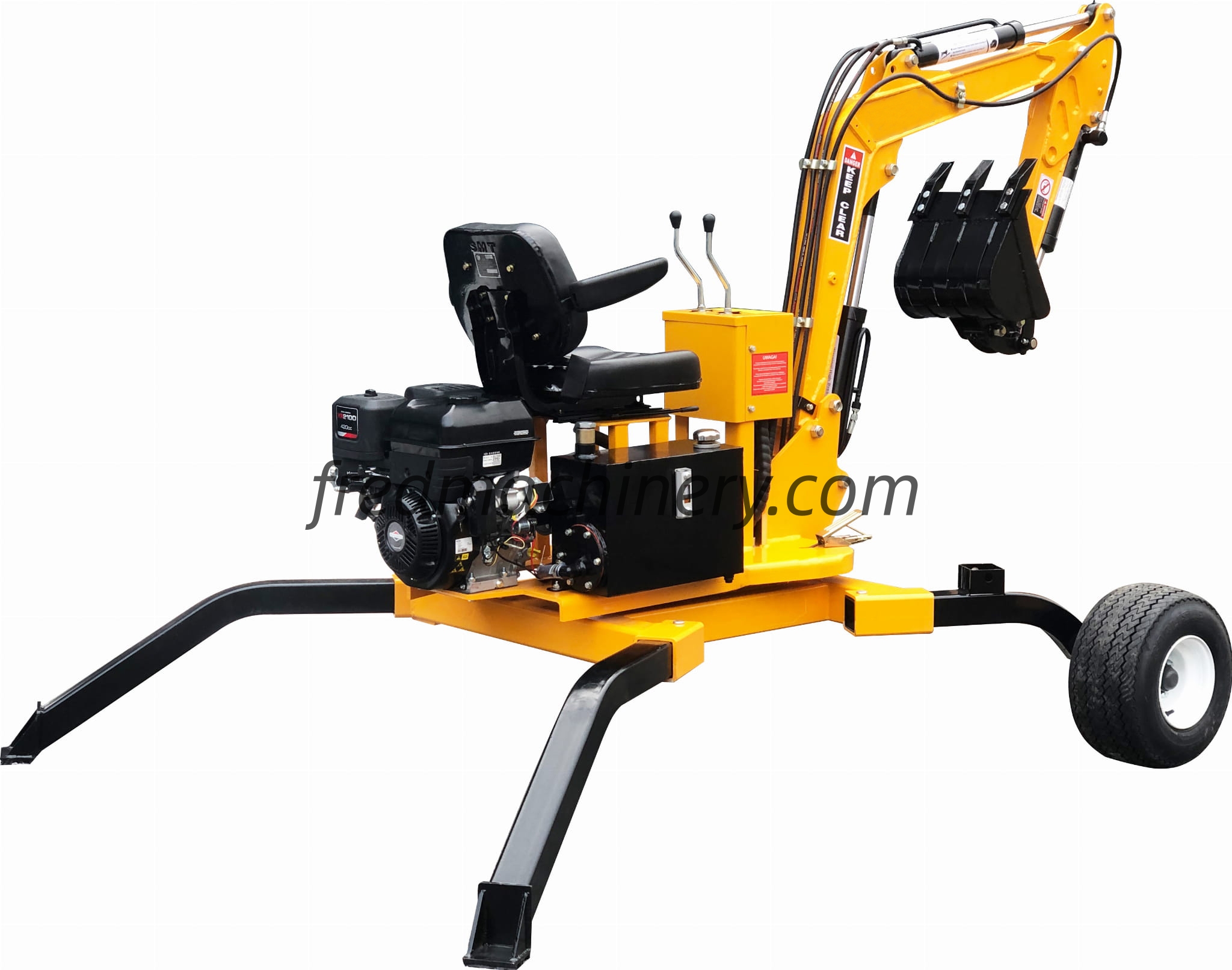

POWERFUL 13.5 HP to 15HP PETROL ENGINE

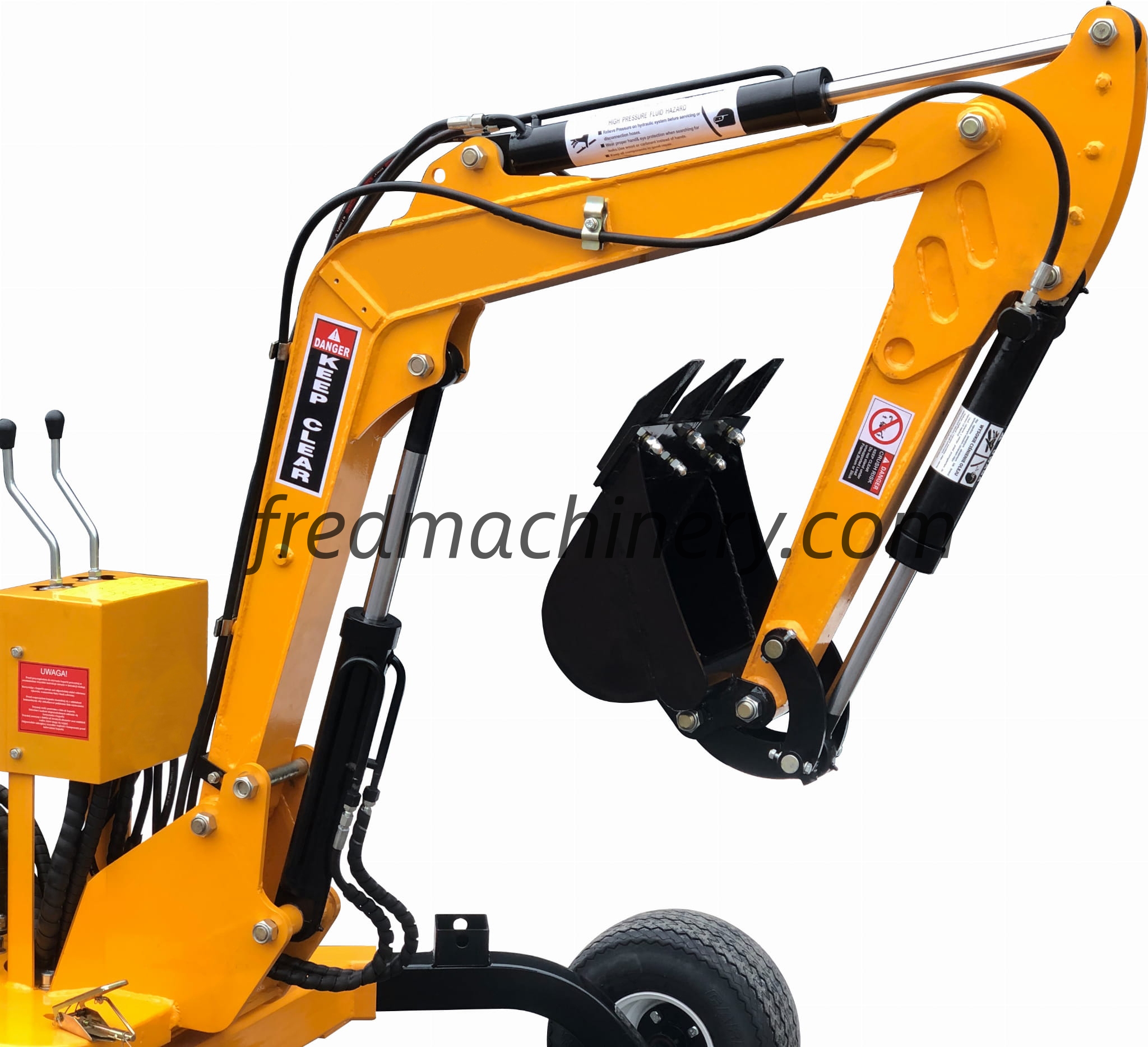

From the powerful 13.5 HP(Briggs & Stratton, 420cc, 4 stroke) to 15HP(Loncin, Lifan, Ducar, RATO, Jiangdong, Zongshen and others) petrol engines for your options and high-performance hydraulics deliver the power needed to tackle even the most demanding tasks. This means you'll always have the required power at your disposal, even for difficult jobs. The Fred Machinery ATBH15 series feature hydraulic controls that enable precise operation of the excavator functions. The intuitive cross-control system simplifies handling and increases efficiency on the construction site. Our ATBH15 comes standard with an additional control unit and thus an additional hydraulic control circuit on the excavator arm. This allows you to expand your working area and, for example, operate an earth drill on this excavator.
OPTIONAL ACCESSORIES
A 25 cm wide bucket is included in the scope of delivery. We also supply 30, 35, 40,45, 50 and 60 cm wide buckets as well as a trench bucket. We also offer a matching grapple and ripper tooth as options. Please feel free to contact us.
