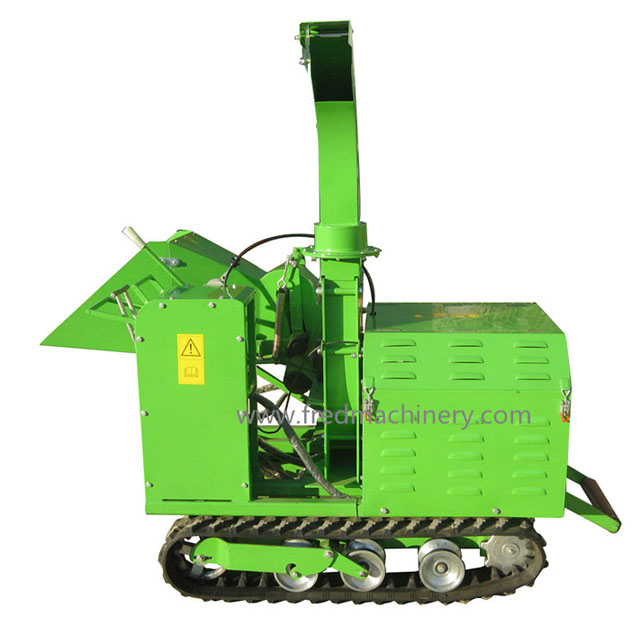

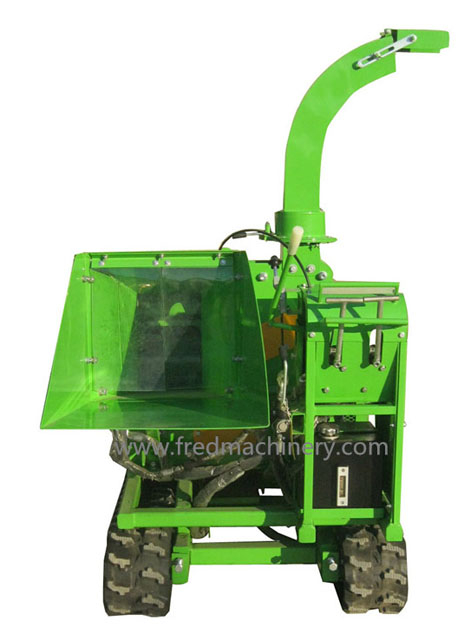

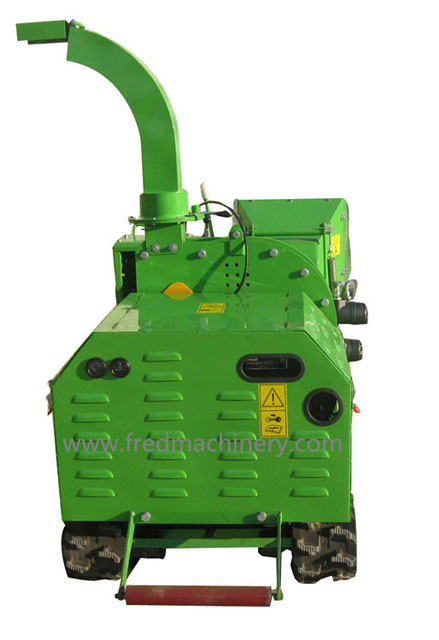

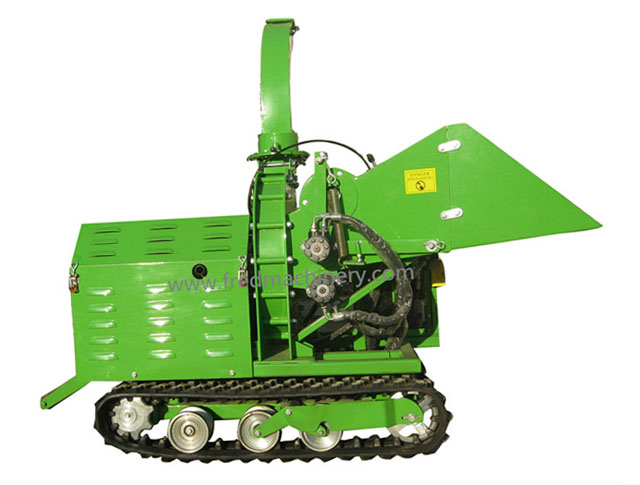

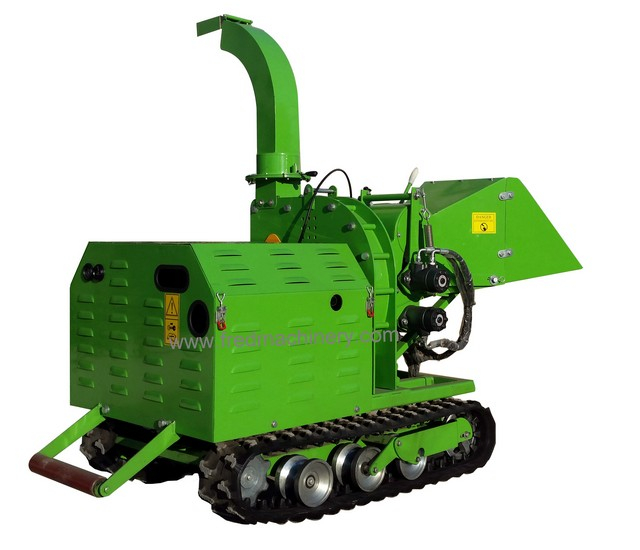

Kohler Gasoline Engine Hydraulic Track Chipper
Kohler Gasoline Engine Hydraulic Track Chipper
Kohler Gasoline Engine Hydraulic Track Chipper
Kohler Gasoline Engine Hydraulic Track Chipper
Kohler Gasoline Engine Hydraulic Track Chipper
Kohler Gasoline Engine Hydraulic Track Chipper
Kohler Gasoline Engine Hydraulic Track Chipper
Share to:

Kohler Gasoline Engine Hydraulic Track Chipper

Color: Red, Green, Orange, Yellow, Blue, Black
Minimum Order Quantity: 1 unit
Packaging: Solid Iron Steel Crate
Mode of shipping: By sea
Loading Port: Qingdao

Quantity:
Inquire Add to Basket
  • KT4R
KT4R TRACK is created for jobs demanding a manoeuvrable and versatile wood chipper that is accessible in all types of areas.

 Model  KT4R
 Gasoline Engine KOHLER Command PRO 19HP, Air Cooling, V-Twin Cylinder, Horizontal Shaft
 Chipping capability Max. 5inches(127mm), recommend 4 inches(100mm)
 Flywheel material  Solid steel
 Rotor flywheel (size) diameter  24 inches (600mm)
 Rotor Thickness  25mm
 Rotor flywheel weight  111lbs. (50kg)
 Turning speed of rotor  1100rpm
 In-Feeding system  Hydraulic feeding, adjustable speed, Forward-Stop-Reverse function
 Feeding system power  Self contained hydraulic tank and pump
 Volume of tank   26L
 Number of knife  2 cutting on rotor + 1 bed balde
 Knife material  Durable Chromium CR-12
 Rotation angle of discharge chute  360 degrees
 Sawdust size Thickness<5mm
 Working efficiency  4~5cbm/h
 Package dimension(LxWxH)  1900x1300x1850mm
 Structure weight  1400lbs.(630kg)

On the way~

Related Products

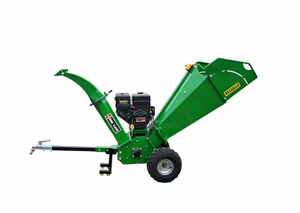

15HP Gasoline Engine Wood Chipper
