DM-18
| Model | DM-18 |
| Power | 18HP |
| Diesel Engine | Model 1110(electric start, 1 cylinder, 2000rpm) |
| Chipping capacity | 8 inches(200mm) |

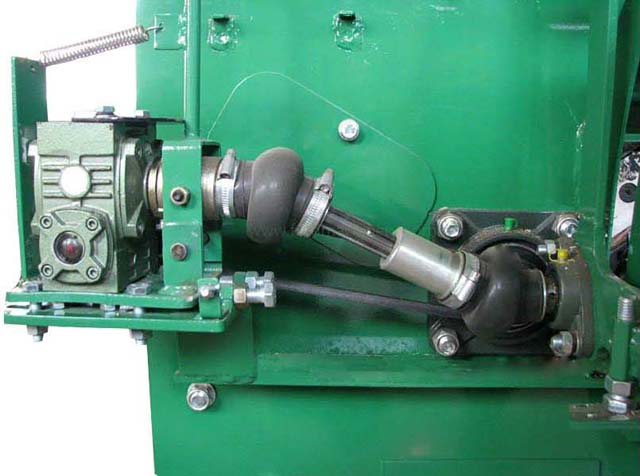

| In-feeding system | Mechanical feeding(reduction gearbox feeding, 4mm/s, only forward function) |

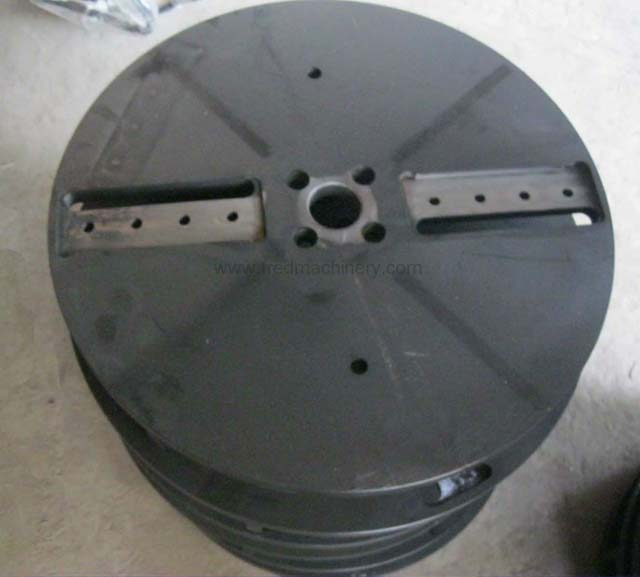

| Flywheel diameter | 24''(600mm) |
| Flywheel weight | 200lbs.(95kg) |
| Flywheel turning speed | 1080rpm |
| Number of knife | 2 cutting knives on rotor + 1 bed blade |
| Knife material | Durable Chromium CR-12 |
| Discharge chute rotation angle | 360 degrees |
| Configurations | Turning light, road and turf tire, 2'' hitch ball, safety chains and leaf springs on axle |
| Working efficiency | 6~7cbm/h |
| Weight | 620kg |
| Model | DM-18 |
| Power | 18HP |
| Diesel Engine | Model 1110(electric start, 1 cylinder, 2000rpm) |
| Chipping capacity | 8 inches(200mm) |
| In-feeding system | Mechanical feeding(reduction gearbox feeding, 4mm/s, only forward function) |
| Flywheel diameter | 24''(600mm) |
| Flywheel weight | 200lbs.(95kg) |
| Flywheel turning speed | 1080rpm |
| Number of knife | 2 cutting knives on rotor + 1 bed blade |
| Knife material | Durable Chromium CR-12 |
| Discharge chute rotation angle | 360 degrees |
| Configurations | Turning light, road and turf tire, 2'' hitch ball, safety chains and leaf springs on axle |
| Working efficiency | 6~7cbm/h |
| Weight | 620kg |
